Two billiard balls are at rest and touching each other on a pool table. The cue ball travels at 3.8 m/s along the line of symmetry between these balls and strikes them simultaneously. If the collision is elastic, what is the velocity of the three balls after the collision?

final velocity of cue ball is ( 0.76 m/s ) i ^ , final velocities of the other two balls are 2.6 m/s at ±30° with respect to the initial velocity of the cue ball

Got questions? Get instant answers now!

A billiard ball traveling at ( 2.2 m/s ) i ^ ( 0.4 m/s ) j ^ collides with a wall that is aligned in the j ^ direction. Assuming the collision is elastic, what is the final velocity of the ball?

Got questions? Get instant answers now!

Two identical billiard balls collide. The first one is initially traveling at ( 2.2 m/s ) i ^ ( 0.4 m/s ) j ^ and the second one at ( 1.4 m/s ) i ^ + ( 2.4 m/s ) j ^ . Suppose they collide when the center of ball 1 is at the origin and the center of ball 2 is at the point ( 2 R , 0 ) where R is the radius of the balls. What is the final velocity of each ball?

ball 1: ( 1.4 m/s ) i ^ ( 0.4 m/s ) j ^ , ball 2: ( 2.2 m/s ) i ^ + ( 2.4 m/s ) j ^

Got questions? Get instant answers now!

Repeat the preceding problem if the balls collide when the center of ball 1 is at the origin and the center of ball 2 is at the point ( 0 , 2 R ) .

Got questions? Get instant answers now!

Repeat the preceding problem if the balls collide when the center of ball 1 is at the origin and the center of ball 2 is at the point ( 3 R / 2 , R / 2 )

ball 1: ( 1.4 m/s ) i ^ ( 1.7 m/s ) j ^ , ball 2: ( 2.8 m/s ) i ^ + ( 0.012 m/s ) j ^

Got questions? Get instant answers now!

Where is the center of mass of a semicircular wire of radius R that is centered on the origin, begins and ends on the x axis, and lies in the x , y plane?

Got questions? Get instant answers now!

Where is the center of mass of a slice of pizza that was cut into eight equal slices? Assume the origin is at the apex of the slice and measure angles with respect to an edge of the slice. The radius of the pizza is R .

( r , θ ) = ( 2 R / 3 , π / 8 )

Got questions? Get instant answers now!

If the entire population of Earth were transferred to the Moon, how far would the center of mass of the Earth-Moon-population system move? Assume the population is 7 billion, the average human has a mass of 65 kg, and that the population is evenly distributed over both the Earth and the Moon. The mass of the Earth is 5.97 × 10 24 kg and that of the Moon is 7.34 × 10 22 kg . The radius of the Moon’s orbit is about 3.84 × 10 5 m .

Got questions? Get instant answers now!

You friend wonders how a rocket continues to climb into the sky once it is sufficiently high above the surface of Earth so that its expelled gasses no longer push on the surface. How do you respond?

Answers may vary. The rocket is propelled forward not by the gasses pushing against the surface of Earth, but by conservation of momentum. The momentum of the gas being expelled out the back of the rocket must be compensated by an increase in the forward momentum of the rocket.

Got questions? Get instant answers now!

To increase the acceleration of a rocket, should you throw rocks out of the front window of the rocket or out of the back window?

Got questions? Get instant answers now!

Challenge

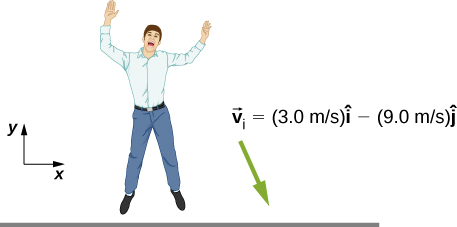

A 65-kg person jumps from the first floor window of a burning building and lands almost vertically on the ground with a horizontal velocity of 3 m/s and vertical velocity of −9 m/s . Upon impact with the ground he is brought to rest in a short time. The force experienced by his feet depends on whether he keeps his knees stiff or bends them. Find the force on his feet in each case.

A drawing of a person near the ground. His velocity vector is directed down and slightly to the left and is given as 3.0 meters per second i hat minus 9.0 meters per second j hat. The x y directions are shown for reference, with x to the right and y upward.
  1. First find the impulse on the person from the impact on the ground. Calculate both its magnitude and direction.
  2. Find the average force on the feet if the person keeps his leg stiff and straight and his center of mass drops by only 1 cm vertically and 1 cm horizontally during the impact.
  3. Find the average force on the feet if the person bends his legs throughout the impact so that his center of mass drops by 50 cm vertically and 5 cm horizontally during the impact.
  4. Compare the results of part (b) and (c), and draw conclusions about which way is better.

You will need to find the time the impact lasts by making reasonable assumptions about the deceleration. Although the force is not constant during the impact, working with constant average force for this problem is acceptable.

a. 617 N · s , 108°; b. F x = 2.91 × 10 4 N , F y = 2.6 × 10 5 N ; c. F x = 5265 N , F y = 5850 N

Got questions? Get instant answers now!

Two projectiles of mass m 1 and m 2 are fired at the same speed but in opposite directions from two launch sites separated by a distance D . They both reach the same spot in their highest point and strike there. As a result of the impact they stick together and move as a single body afterwards. Find the place they will land.

Got questions? Get instant answers now!

Two identical objects (such as billiard balls) have a one-dimensional collision in which one is initially motionless. After the collision, the moving object is stationary and the other moves with the same speed as the other originally had. Show that both momentum and kinetic energy are conserved.

Conservation of momentum demands m 1 v 1,i + m 2 v 2,i = m 1 v 1,f + m 2 v 2,f . We are given that m 1 = m 2 , v 1,i = v 2,f , and v 2,i = v 1,f = 0 . Combining these equations with the equation given by conservation of momentum gives v 1,i = v 1,i , which is true, so conservation of momentum is satisfied. Conservation of energy demands 1 2 m 1 v 1,i 2 + 1 2 m 2 v 2,i 2 = 1 2 m 1 v 1,f 2 + 1 2 m 2 v 2,f 2 . Again combining this equation with the conditions given above give v 1,i = v 1,i , so conservation of energy is satisfied.

Got questions? Get instant answers now!

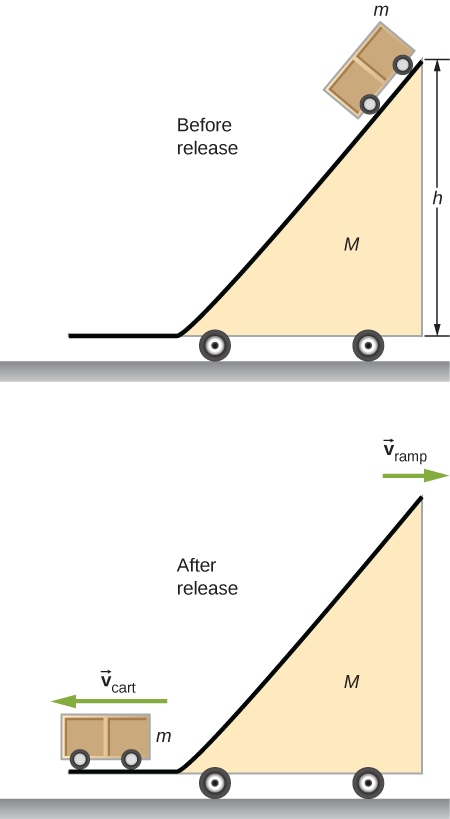

A ramp of mass M is at rest on a horizontal surface. A small cart of mass m is placed at the top of the ramp and released.

Before release, the cart, mass m, is at the top of a structure that consists of a horizontal stretch a the bottom and a ramp that rises up and to the right to a height h. The ramp has mass M and is on wheels. After release, the cart mass m is on the horizontal part of the ramp and is moving to the left with velocity v cart. The ramp is moving to the right with velocity v ramp.

What are the velocities of the ramp and the cart relative to the ground at the instant the cart leaves the ramp?

Got questions? Get instant answers now!

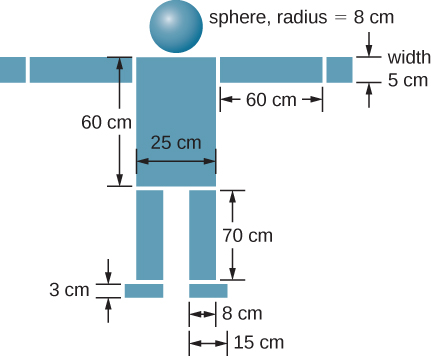

Find the center of mass of the structure given in the figure below. Assume a uniform thickness of 20 cm, and a uniform density of 1 g/cm 3 .

A diagram of several masses arranged to look like a model of a person is shown. At the top is a sphere, radius 8 cm. Centered below it is a rectangle 25 cm wide horizontally and 60 cm tall that looks like the body of the person. On either side of the rectangle are rectangles measuring 60 cm horizontally and 5 cm tall that look like the outstretched arms. The tops or the arms are aligned with the top of the body, and each arm extends out from the sides of the body horizontally. At the end of each arm is a 5 cm wide square. Below the body are the legs. Each leg is 70 cm tall and 8 cm wide. The tops of the legs are aligned with the bottom of the body. The outer sides of the legs are aligned with the sides o the body. Below each leg are the feet, which are 3 cm tall and 15 cm wide. The inner side of each foot is aligned with the inner side of the leg above it.

Assume origin on centerline and at floor, then ( x CM , y CM ) = ( 0,86 cm )

Got questions? Get instant answers now!
