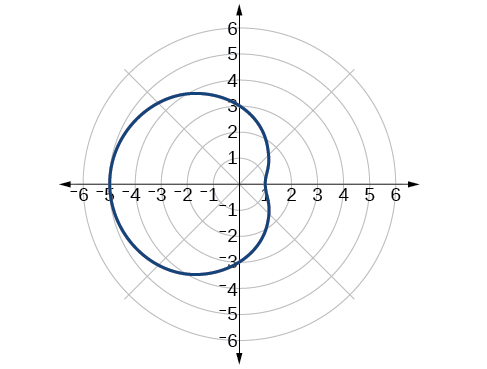

Sketch the graph of $\text{\hspace{0.17em}}r=3-2\mathrm{cos}\text{\hspace{0.17em}}\theta .$

Another type of limaçon, the inner-loop limaçon , is named for the loop formed inside the general limaçon shape. It was discovered by the German artist Albrecht Dürer (1471-1528), who revealed a method for drawing the inner-loop limaçon in his 1525 book Underweysung der Messing . A century later, the father of mathematician Blaise Pascal , Étienne Pascal(1588-1651), rediscovered it.

## Formulas for inner-loop limaçons

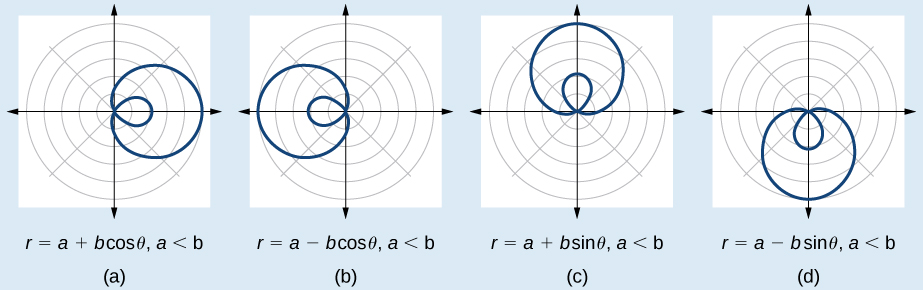

The formulas that generate the inner-loop limaçons are given by $\text{\hspace{0.17em}}r=a±b\mathrm{cos}\text{\hspace{0.17em}}\theta \text{\hspace{0.17em}}$ and $\text{\hspace{0.17em}}r=a±b\mathrm{sin}\text{\hspace{0.17em}}\theta \text{\hspace{0.17em}}$ where $\text{\hspace{0.17em}}a>0,\text{\hspace{0.17em}}\text{\hspace{0.17em}}b>0,\text{\hspace{0.17em}}$ and $\text{\hspace{0.17em}}\text{\hspace{0.17em}}a The graph of the inner-loop limaçon passes through the pole twice: once for the outer loop, and once for the inner loop. See [link] for the graphs.

## Sketching the graph of an inner-loop limaçon

Sketch the graph of $\text{\hspace{0.17em}}r=2+5\text{cos}\text{\hspace{0.17em}}\theta .$

Testing for symmetry, we find that the graph of the equation is symmetric about the polar axis. Next, finding the zeros reveals that when $\text{\hspace{0.17em}}r=0,\text{\hspace{0.17em}}\text{\hspace{0.17em}}\theta =1.98.\text{\hspace{0.17em}}$ The maximum $\text{\hspace{0.17em}}|r|\text{\hspace{0.17em}}$ is found when $\text{\hspace{0.17em}}\mathrm{cos}\text{\hspace{0.17em}}\theta =1\text{\hspace{0.17em}}$ or when $\text{\hspace{0.17em}}\theta =0.\text{\hspace{0.17em}}$ Thus, the maximum is found at the point (7, 0).

Even though we have found symmetry, the zero, and the maximum, plotting more points will help to define the shape, and then a pattern will emerge.

 $\theta$ $0$ $\frac{\pi }{6}$ $\frac{\pi }{3}$ $\frac{\pi }{2}$ $\frac{2\pi }{3}$ $\frac{5\pi }{6}$ $\pi$ $\frac{7\pi }{6}$ $\frac{4\pi }{3}$ $\frac{3\pi }{2}$ $\frac{5\pi }{3}$ $\frac{11\pi }{6}$ $2\pi$ $r$ 7 6.3 4.5 2 −0.5 −2.3 −3 −2.3 −0.5 2 4.5 6.3 7

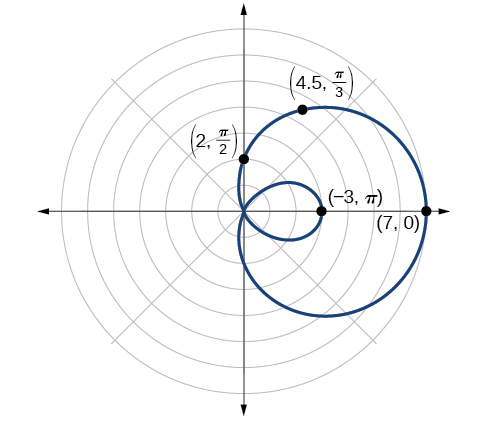

As expected, the values begin to repeat after $\text{\hspace{0.17em}}\theta =\pi .\text{\hspace{0.17em}}$ The graph is shown in [link] .

## Investigating lemniscates

The lemniscate is a polar curve resembling the infinity symbol $\text{\hspace{0.17em}}\infty \text{\hspace{0.17em}}$ or a figure 8. Centered at the pole, a lemniscate is symmetrical by definition.

## Formulas for lemniscates

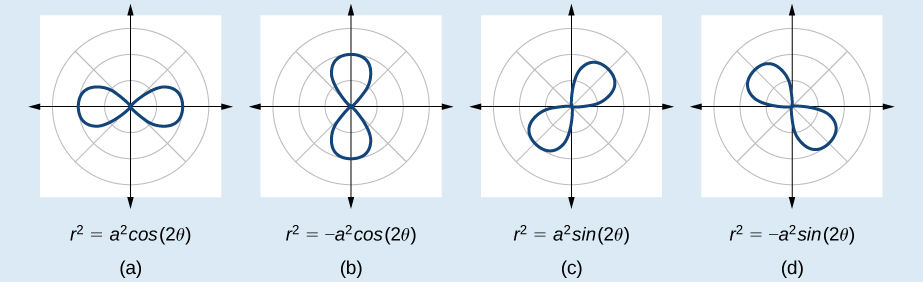

The formulas that generate the graph of a lemniscate    are given by $\text{\hspace{0.17em}}{r}^{2}={a}^{2}\mathrm{cos}\text{\hspace{0.17em}}2\theta \text{\hspace{0.17em}}$ and $\text{\hspace{0.17em}}{r}^{2}={a}^{2}\mathrm{sin}\text{\hspace{0.17em}}2\theta \text{\hspace{0.17em}}$ where $\text{\hspace{0.17em}}a\ne 0.\text{\hspace{0.17em}}$ The formula $\text{\hspace{0.17em}}{r}^{2}={a}^{2}\mathrm{sin}\text{\hspace{0.17em}}2\theta \text{\hspace{0.17em}}$ is symmetric with respect to the pole. The formula $\text{\hspace{0.17em}}{r}^{2}={a}^{2}\mathrm{cos}\text{\hspace{0.17em}}2\theta \text{\hspace{0.17em}}$ is symmetric with respect to the pole, the line $\text{\hspace{0.17em}}\theta =\frac{\pi }{2},\text{\hspace{0.17em}}$ and the polar axis. See [link] for the graphs.

## Sketching the graph of a lemniscate

Sketch the graph of $\text{\hspace{0.17em}}{r}^{2}=4\mathrm{cos}\text{\hspace{0.17em}}2\theta .$

The equation exhibits symmetry with respect to the line $\text{\hspace{0.17em}}\theta =\frac{\pi }{2},\text{\hspace{0.17em}}$ the polar axis, and the pole.

Let’s find the zeros. It should be routine by now, but we will approach this equation a little differently by making the substitution $\text{\hspace{0.17em}}u=2\theta .$

So, the point $\left(0,\frac{\pi }{4}\right)$ is a zero of the equation.

Now let’s find the maximum value. Since the maximum of $\text{\hspace{0.17em}}\mathrm{cos}\text{\hspace{0.17em}}u=1\text{\hspace{0.17em}}$ when $\text{\hspace{0.17em}}u=0,\text{\hspace{0.17em}}$ the maximum $\text{\hspace{0.17em}}\mathrm{cos}\text{\hspace{0.17em}}2\theta =1\text{\hspace{0.17em}}$ when $\text{\hspace{0.17em}}2\theta =0.\text{\hspace{0.17em}}$ Thus,

$\begin{array}{c}\text{\hspace{0.17em}}{r}^{2}=4\mathrm{cos}\left(0\right)\\ \text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}{r}^{2}=4\left(1\right)=4\\ \text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}r=±\sqrt{4}\text{\hspace{0.17em}}=2\end{array}$

We have a maximum at (2, 0). Since this graph is symmetric with respect to the pole, the line $\text{\hspace{0.17em}}\theta =\frac{\pi }{2},$ and the polar axis, we only need to plot points in the first quadrant.

Make a table similar to [link] .

 $\theta$ 0 $\frac{\pi }{6}$ $\frac{\pi }{4}$ $\frac{\pi }{3}$ $\frac{\pi }{2}$ $r$ 2 $\sqrt{2}$ 0 $\sqrt{2}$ 0

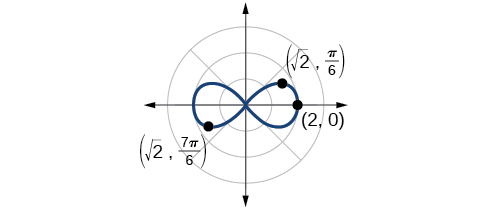

Plot the points on the graph, such as the one shown in [link] .

## Investigating rose curves

The next type of polar equation produces a petal-like shape called a rose curve. Although the graphs look complex, a simple polar equation generates the pattern.

## Rose curves

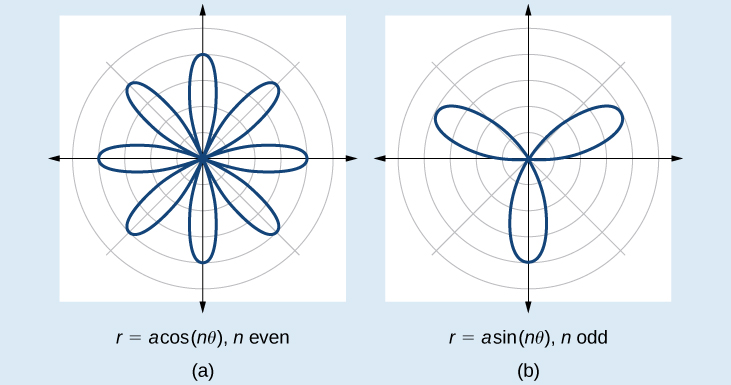

The formulas that generate the graph of a rose curve    are given by $\text{\hspace{0.17em}}r=a\mathrm{cos}\text{\hspace{0.17em}}n\theta \text{\hspace{0.17em}}$ and $\text{\hspace{0.17em}}r=a\mathrm{sin}\text{\hspace{0.17em}}n\theta \text{\hspace{0.17em}}$ where $\text{\hspace{0.17em}}a\ne 0.\text{\hspace{0.17em}}$ If $\text{\hspace{0.17em}}n\text{\hspace{0.17em}}$ is even, the curve has $\text{\hspace{0.17em}}2n\text{\hspace{0.17em}}$ petals. If $\text{\hspace{0.17em}}n\text{\hspace{0.17em}}$ is odd, the curve has $\text{\hspace{0.17em}}n\text{\hspace{0.17em}}$ petals. See [link] .
