LEED experimental equipment

The typical diagram of a LEED system is shown in [link] . This system sends an electron beam to the surface of the sample, which comes from an electron gun behind a transparent hemispherical fluorescent screen. The electron gun consists of a heated cathode and a set of focusing lenses which send electrons at low energies. The electrons collide with the sample and diffract in different directions depending on the surface. Once diffracted, they are directed to the fluorescent screen. Before colliding with the screen, they must pass through four different grids (known as retarding grids), which contain a central hole through which the electron gun is inserted. The first grid is the nearest one to the sample and is connected to earth ground. A negative potential is applied to the second and third grids, which act as suppressor grids, given that they repel all electrons coming from non–elastic diffractions. These grids perform as filters, which only allow the highest–energy electrons to pass through; the electrons with the lowest energies are blocked in order to prevent a bad resolution image. The fourth grid protects the phosphor screen, which possesses positive charge from the negative grids. The remaining electrons collide with the luminescent screen, creating a phosphor glow (left side of [link] ), where the light intensity depends on the electron intensity.

instrument work

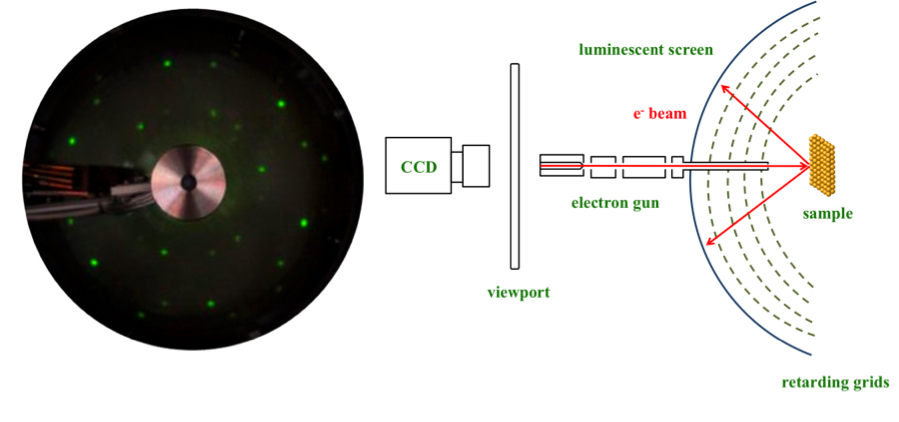

Schematic diagram of a typical LEED instrument and an example of the LEED pattern view by the CCD camera. Adapted from L. Meng, Y. Wang, L. Zhang, S. Du, R. Wu, L. Li, Y. Zhang, G. Li, H. Zhou, W. Hofer, H. Gao, Nano Letters , 2013, 13 , 685. Copyright: American Chemical Society 2013.

For conventional systems of LEED, it is necessary a method of data acquisition. In the past, the general method for analyzing the diffraction pattern was to manually take several dozen pictures. After the development of computers, the photographs were scanned and digitalized for further analysis through computational software. Years later, the use of the charge–coupled device (CCD) camera was incorporated, allowing rapid acquisition, the possibility to average frames during the acquisition in order to improve the signal, the immediate digitalization and channeling of LEED pattern. In the case of the IV curves, the intensities of the points are extracted making use of special algorithms. [link] shows a commercial LEED spectrometer with the CCD camera, which has to be in an ultra-high vacuum vessel.

instrument optics

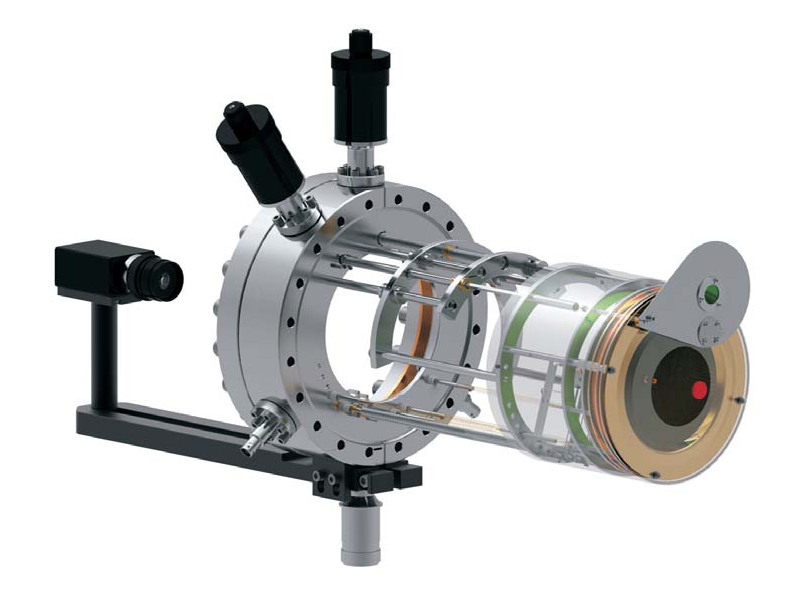

Commercial LEED Spectrometer (OCI Vacuum Micro engineering Inc).

LEED applications

We have previously talked about the discovery of LEED and its principles, along with the experimental setup of a LEED system. It was also mentioned that LEED provides qualitative and quantitative surface analysis. In the following section, we will discuss the most common applications of LEED and the information that one can obtain with this technique.

Study of adsorbates on the surface and disorder layers

One of the principal applications of LEED is the study of adsorbates on catalysts, due to its high surface sensitivity. In order to illustrate the application of LEED in the study of adsorbates. As an example, [link] a shows the surface of Cu (100) single crystal, the pristine material. This surface was cleaned carefully by various cycles of sputtering with ions of argon, followed by annealing. The LEED patter of Cu (100) presents four well-defined spots corresponding to its cubic unit cell.
