SSPD_Chapter1_Part 11 is a continuation of Solid State of Matter. This describes indirect band gap material and its non-radiative transition charactistics and direct band gap material and its radiative transition characteristics.

SSPD_Chapter 1_Part 11_Continued_Direct and indirect Band gap Semiconductors.


Silicon and Germanium are indirect band-gap materials as shown in Figure(1.58.a and b). Whereas compound semiconductors are direct band-gap materials, as shown in Figure (1.59.), with the exception of GaP which need special doping to become direct band gap. When the top of the valence band and bottom of the conduction band occurs at k=0 then we have Direct Band Gap material. Here direct transition occurs hence it is radiative transition . Photons can mediate direct transitions. But when the bottom of the conduction band occurs at k= π/a and bottom of the valence band occurs at k=0 then indirect transition occurs. The extra momentum ћk = ћ.(π/a)= h/(2a) cannot be removed by photon. Phonon has larger momentum and phonon mediates an indirect transition. This leads to increase in thermal vibration of crystal lattice. Phonon is a quanta of lattice vibrational energy. Hence indirect transition is non-radiative. If the edge of conduction band is made of s-orbital electrons then we have direct band-gap material. If the edge of conduction band is made of p-orbital then we have indirect band-gap material.

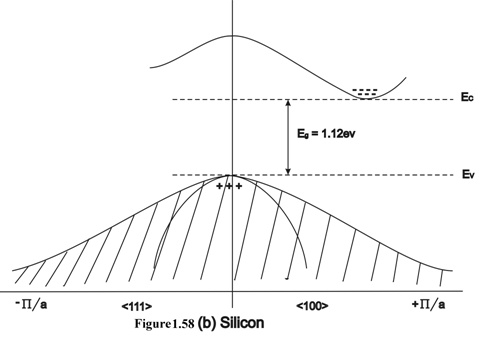

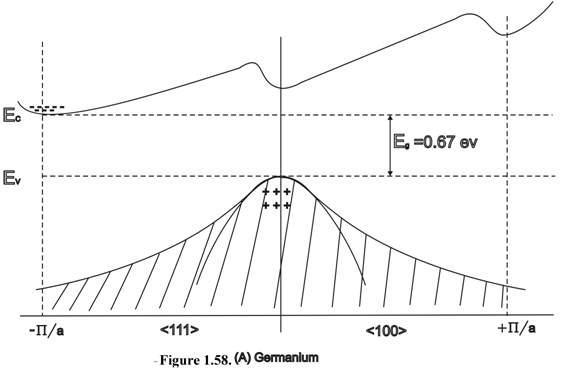

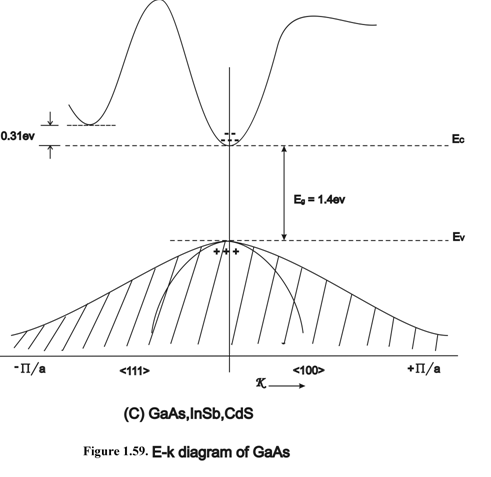

Figure.1.58 and 59. E-k diagram of Ge, Si and GaAs PHONONS.

A quanta of lattice vibrational energy is known as phonon. A Crystal Lattice System can be treated as lattice centers interconnected with bonds equivalent to elastic springs. These springs, representing the atomic bonds, behave like harmonic oscillators which has quantized energies E n = (n+1/2)ћω. At 0K, the Zero Point Energy of the lattice is (1/2)ћω. The Lattice vibrations propogate like coupled vibrations or as cooperative vibrations of many atoms. Lattice vibrations are longitudinal (atomic vibrations are in the same direction as that of propogation) as well as transverse (atomic vibrations are at right angle to the direction of propogation) as shown in Figure (1.60). These lattice vibrations travel as lattice waves. They occur at 4×10 12 Hz and at 14×10 12 Hz .At 4×10 12 Hz the phonons are known as Transverse Acoustical (TA) Waves and as Longitudinal Acoustical (LA) Waves. At 14×10 12 Hz, these are known as Transverse Optical (TO) Waves and as Longitudinal Optical (LO) Waves.

The velocity of propogation = √(B/ρ)

where B is the elastic bulk modulus and ρ is the density of the crystal.

Substituting the appropriate values B= 70Gpa and ρ= 2.7 gm-cm -3 for Aluminium:

Velocity of propogation is 5092m/s in Aluminum.

The frequency of oscillation is ~ 10 13 Hz.

Therefore λ phonon =velocity/ frequency= 5 A°;

Linear momentum of phonons = p phonons = h/λ= 10 -24 Kg-m/sec = ћk;

Therefore k phonons = 10 -24 Kg-m/sec/ћ= 2π×10 10 radians/m ;

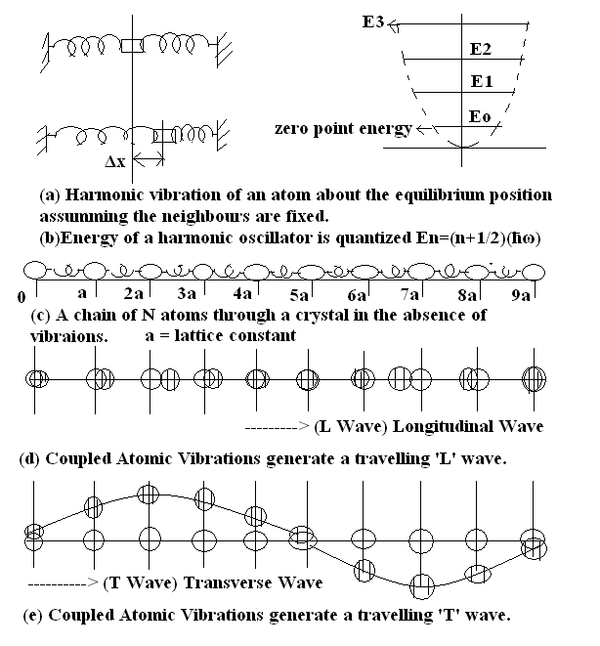

Figure 1.60. Crystal Lattice System represented as Coupled Harmonic Oscillators. PHOTONS.

Photon is a quanta of optical energy. If we examine Green colored photons of wavelength λ = 500nm

then p photons = h/λ = 13.26×10 -28 Kg-m/sec ;

We see that p photons <<p phonons;

Also k photons = 2π×10 7 radians/m ;

In a indirect band-gap material, at the bottom of the conduction band, conducting electrons have k = π/a = π/(5×10 -10 ) therefore k= (π/5) ×10 10 radians/m whereas holes have k=0. Therefore in in-direct transition the mediating particle must take away the energy as well as momentum. Conservation of momentum can be achieved only through the mediation of phonons (k phonons = 2π×10 10 radians/m) because of significant excess momentum present during in-direct transition. Hence in-direct transition is accompanied with the emission of phonons rather than photons. Therefore in-direct transition is non-radiative whereas direct transition is radiative. Therefore Direct Band Gap materials are suitable for light sources. RADIATIVE AND NON-RADIATIVE TRANSITION.

Indirect Transition(momentum as well as energy has to be accounted for):

conducting electron + hole = phonons (non-radiative);

Direct Transition (momentum is zero for both carriers and only energy has to be accounted for :

conducting electron + hole = photons (radiative);
