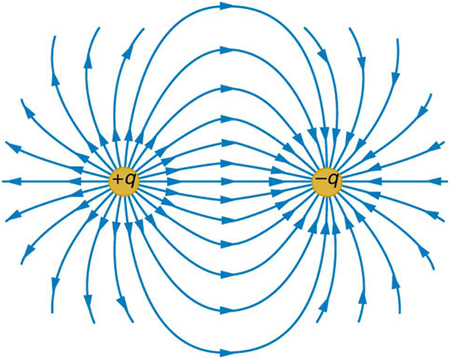

The electric force field between a positively charged particle and a negatively charged particle. Electric field lines start from the positive charge and end at the negative charge, and each line is represented as a curved arrow.
The electric force field between a positively charged particle and a negatively charged particle. When a positive test charge is placed in the field, the charge will experience a force in the direction of the force field lines.

Concept connections: force fields

The concept of a force field is also used in connection with electric charge. It is also a useful idea for all the basic forces. Fields help us to visualize forces and how they are transmitted, as well as to describe them with precision and to link forces with subatomic carrier particles.

The field concept has been applied very successfully; we can calculate motions and describe nature to high precision using field equations. As useful as the field concept is, however, it leaves unanswered the question of what carries the force. It has been proposed in recent decades, starting in 1935 with Hideki Yukawa’s (1907–1981) work on the strong nuclear force, that all forces are transmitted by the exchange of elementary particles. We can visualize particle exchange as analogous to macroscopic phenomena such as two people passing a basketball back and forth, thereby exerting a repulsive force without touching one another. (See [link] .)

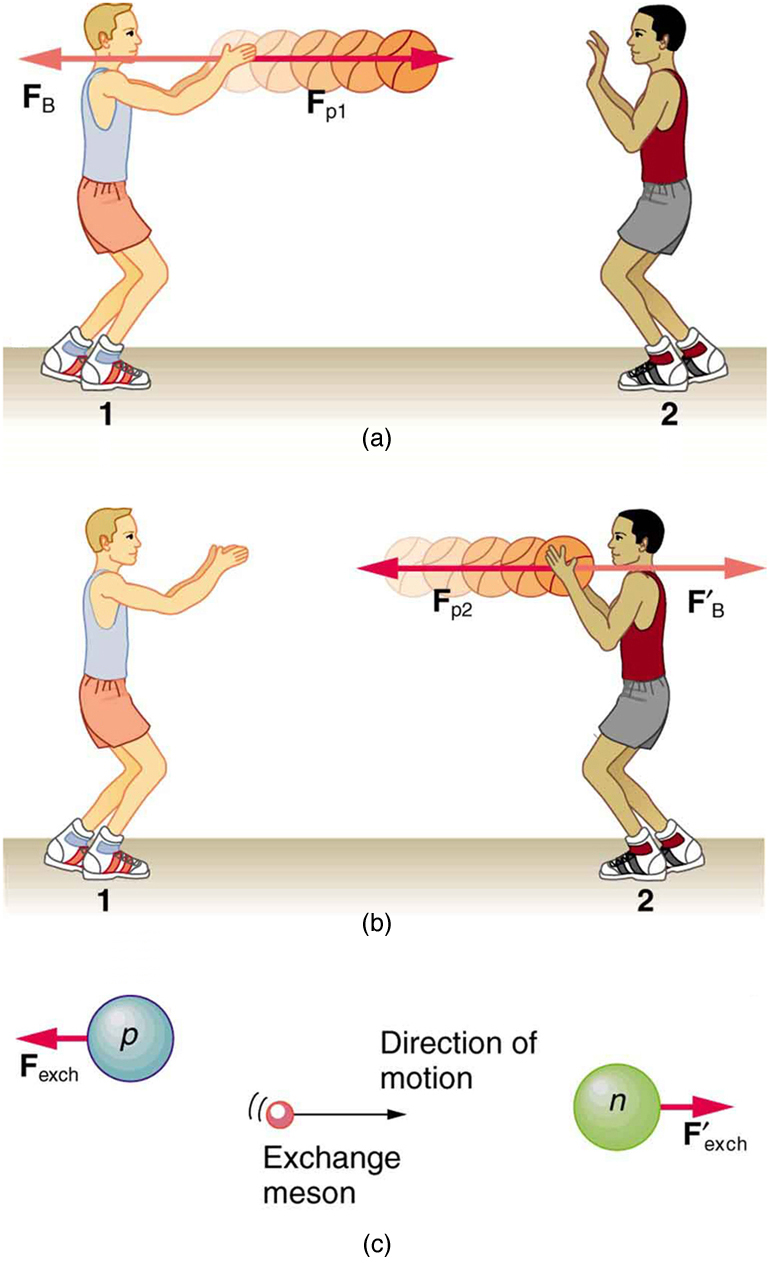

(a) Two persons throwing a basketball to each other. The person on the left is throwing the ball with some force F sub p one, represented by a vector pointing right, in the direction of the motion of the ball. A reaction force F sub B is shown on the person by a vector pointing left. (b) The person catches the ball, exerting a force F sub p two on the ball toward the left, shown by a vector F sub p two toward the left. A reaction force F prime sub B acts on the person, shown by a vector pointing toward right. (c) The exchange of a meson is shown between a proton and a neutron. Both are moving in different directions, and the proton feels a force F sub exch toward the left and the neutron feels a force F prime sub exch toward the right. The meson is also moving toward the right between the proton and the neutron.
The exchange of masses resulting in repulsive forces. (a) The person throwing the basketball exerts a force F p1 on it toward the other person and feels a reaction force F B away from the second person. (b) The person catching the basketball exerts a force F p2 on it to stop the ball and feels a reaction force F′ B away from the first person. (c) The analogous exchange of a meson between a proton and a neutron carries the strong nuclear forces F exch and F′ exch between them. An attractive force can also be exerted by the exchange of a mass—if person 2 pulled the basketball away from the first person as he tried to retain it, then the force between them would be attractive.

This idea of particle exchange deepens rather than contradicts field concepts. It is more satisfying philosophically to think of something physical actually moving between objects acting at a distance. [link] lists the exchange or carrier particles , both observed and proposed, that carry the four forces. But the real fruit of the particle-exchange proposal is that searches for Yukawa’s proposed particle found it and a number of others that were completely unexpected, stimulating yet more research. All of this research eventually led to the proposal of quarks as the underlying substructure of matter, which is a basic tenet of GUTs. If successful, these theories will explain not only forces, but also the structure of matter itself. Yet physics is an experimental science, so the test of these theories must lie in the domain of the real world. As of this writing, scientists at the CERN laboratory in Switzerland are starting to test these theories using the world’s largest particle accelerator: the Large Hadron Collider. This accelerator (27 km in circumference) allows two high-energy proton beams, traveling in opposite directions, to collide. An energy of 14 million electron volts will be available. It is anticipated that some new particles, possibly force carrier particles, will be found. (See [link] .) One of the force carriers of high interest that researchers hope to detect is the Higgs boson. The observation of its properties might tell us why different particles have different masses.
