  • Define arc length, rotation angle, radius of curvature and angular velocity.
  • Calculate the angular velocity of a car wheel spin.

Rotation angle

When objects rotate about some axis—for example, when the CD (compact disc) in [link] rotates about its center—each point in the object follows a circular arc. Consider a line from the center of the CD to its edge. Each pit    used to record sound along this line moves through the same angle in the same amount of time. The rotation angle is the amount of rotation and is analogous to linear distance. We define the rotation angle     Δ θ size 12{Δθ} {} to be the ratio of the arc length to the radius of curvature:

Δ θ = Δ s r . size 12{Δθ= { {Δs} over {r} } "."} {}

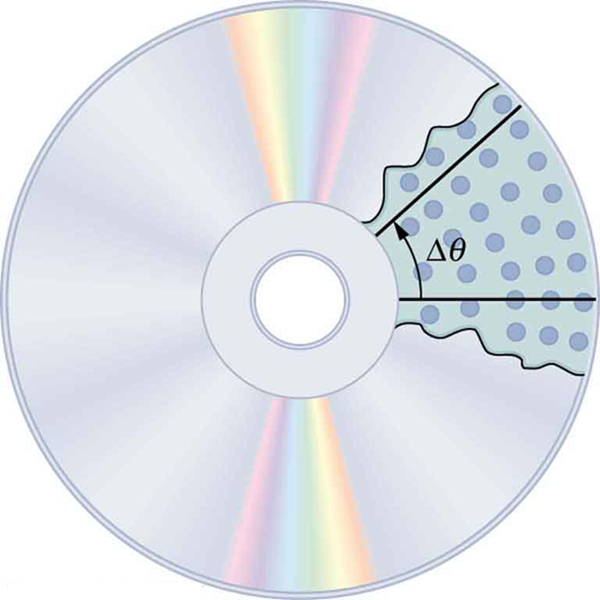

The figure shows the back side of a compact disc. There is a scratched part on the upper right side of the C D, about one-fifth size of the whole area, with inner circular dots clearly visible. Two line segments are drawn enclosing the scratched area from the border of the C D to the middle plastic portion. A curved arrow is drawn between the two line segments near this middle portion and angle delta theta written alongside it.
All points on a CD travel in circular arcs. The pits along a line from the center to the edge all move through the same angle Δ θ size 12{Δθ} {} in a time Δ t size 12{Δt} {} .

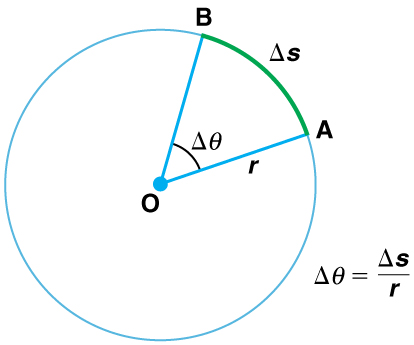

A circle of radius r and center O is shown. A radius O-A of the circle is rotated through angle delta theta about the center O to terminate as radius O-B. The arc length A-B is marked as delta s.
The radius of a circle is rotated through an angle Δ θ size 12{Δθ} {} . The arc length Δs size 12{Δs} {} is described on the circumference.

The arc length     Δ s size 12{Δs} {} is the distance traveled along a circular path as shown in [link] Note that r size 12{r} {} is the radius of curvature    of the circular path.

We know that for one complete revolution, the arc length is the circumference of a circle of radius r size 12{r} {} . The circumference of a circle is r size 12{2πr} {} . Thus for one complete revolution the rotation angle is

Δ θ = r r = . size 12{Δθ= { {2πr} over {r} } =2π"."} {}

This result is the basis for defining the units used to measure rotation angles, Δ θ size 12{Δθ} {} to be radians    (rad), defined so that

rad = 1 revolution. size 12{2π" rad "=" 1 revolution."} {}

A comparison of some useful angles expressed in both degrees and radians is shown in [link] .

Comparison of angular units
Degree Measures Radian Measure
30º size 12{"30"°} {} π 6 size 12{ { {π} over {6} } } {}
60º size 12{"60"°} {} π 3 size 12{ { {π} over {3} } } {}
90º size 12{"90"°} {} π 2 size 12{ { {π} over {2} } } {}
120º size 12{"120"°} {} 3 size 12{ { {2π} over {3} } } {}
135º size 12{"135"°} {} 4 size 12{ { {3π} over {4} } } {}
180º size 12{"180"°} {} π size 12{π} {}

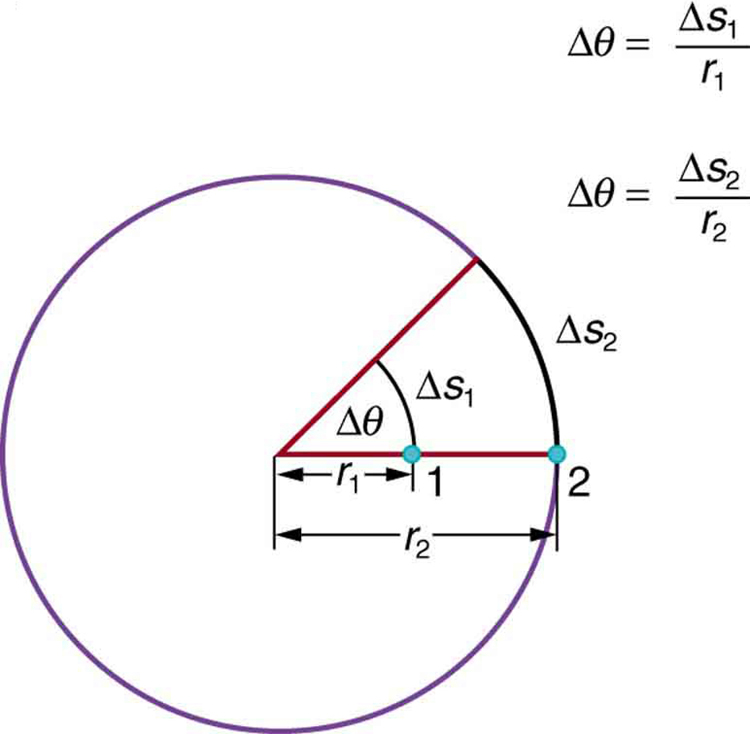

A circle is shown. Two radii of the circle, inclined at an acute angle delta theta, are shown. On one of the radii, two points, one and two are marked. The point one is inside the circle through which an arc between the two radii is shown. The point two is on the cirumfenrence of the circle. The two arc lengths are delta s one and delta s two respectively for the two points.
Points 1 and 2 rotate through the same angle ( Δ θ size 12{Δθ} {} ), but point 2 moves through a greater arc length Δ s size 12{ left (Δs right )} {} because it is at a greater distance from the center of rotation ( r ) size 12{ \( r \) } {} .

If Δ θ = 2 π size 12{Δθ=2π} {} rad, then the CD has made one complete revolution, and every point on the CD is back at its original position. Because there are 360º size 12{"360"°} {} in a circle or one revolution, the relationship between radians and degrees is thus

2 π rad = 360º size 12{2π" rad"="360" rSup { size 8{ circ } } } {}

so that

1 rad = 360º 57. . size 12{1" rad"= { {"360" rSup { size 8{ circ } } } over {2π} } ="57" "." 3 rSup { size 8{ circ } } "."} {}

Angular velocity

How fast is an object rotating? We define angular velocity     ω size 12{ω} {} as the rate of change of an angle. In symbols, this is

ω = Δ θ Δ t , size 12{ω= { {Δθ} over {Δt} } ","} {}

where an angular rotation Δ θ size 12{Δθ} {} takes place in a time Δ t size 12{Δt} {} . The greater the rotation angle in a given amount of time, the greater the angular velocity. The units for angular velocity are radians per second (rad/s).

Angular velocity ω size 12{ω} {} is analogous to linear velocity v size 12{v} {} . To get the precise relationship between angular and linear velocity, we again consider a pit on the rotating CD. This pit moves an arc length Δ s size 12{Δs} {} in a time Δ t size 12{Δt} {} , and so it has a linear velocity

v = Δ s Δ t . size 12{v= { {Δs} over {Δt} } "."} {}

From Δ θ = Δ s r size 12{Δθ= { {Δs} over {r} } } {} we see that Δ s = r Δ θ size 12{Δs=rΔθ} {} . Substituting this into the expression for v size 12{v} {} gives

v = r Δ θ Δ t = . size 12{v= { {rΔθ} over {Δt} } =rω"."} {}

We write this relationship in two different ways and gain two different insights:

v =  or  ω = v r . size 12{v=rω``"or "ω= { {v} over {r} } "."} {}

The first relationship in v =  or  ω = v r size 12{v=rω``"or "ω= { {v} over {r} } } {} states that the linear velocity v size 12{v} {} is proportional to the distance from the center of rotation, thus, it is largest for a point on the rim (largest r size 12{r} {} ), as you might expect. We can also call this linear speed v size 12{v} {} of a point on the rim the tangential speed . The second relationship in v =  or  ω = v r size 12{v=rω``"or "ω= { {v} over {r} } } {} can be illustrated by considering the tire of a moving car. Note that the speed of a point on the rim of the tire is the same as the speed v size 12{v} {} of the car. See [link] . So the faster the car moves, the faster the tire spins—large v size 12{v} {} means a large ω size 12{ω} {} , because v = size 12{v=rω} {} . Similarly, a larger-radius tire rotating at the same angular velocity ( ω size 12{ω} {} ) will produce a greater linear speed ( v size 12{v} {} ) for the car.
