1.4 Quantizer design for entropy coded sytems

An introduction to source-coding Page 1 / 1

Motivated by the cascade of memoryless quantization and entropy coding, the entropy-minimizing scalar memoryless quantizer is derived. Using a compander formulation and tools from the calculus of variations, it is shown that the entropy-minimizing quantizer is the simple uniform quantizer. The penalty associated with memoryless quantization is then analyzed in the asymptotic case of many quantization levels.

Say that we are designing a system with a memoryless quantizer followed by an entropy coder, and our goal is to minimize theaverage transmission rate for a given σ _q ² (or vice versa). Is it optimal to cascade a σ _q ² -minimizing (Lloyd-Max) quantizer with a rate-minimizing code?In other words, what is the optimal memoryless quantizer if the quantized outputs are to be entropy coded?
A Compander Formulation: To determine the optimal quantizer,
1. consider a companding system: a memoryless nonlinearity $c (x)$ followed by uniform quantizer,
2. find $c (x)$ minimizing entropy H _y for a fixed error variance σ _q ² .

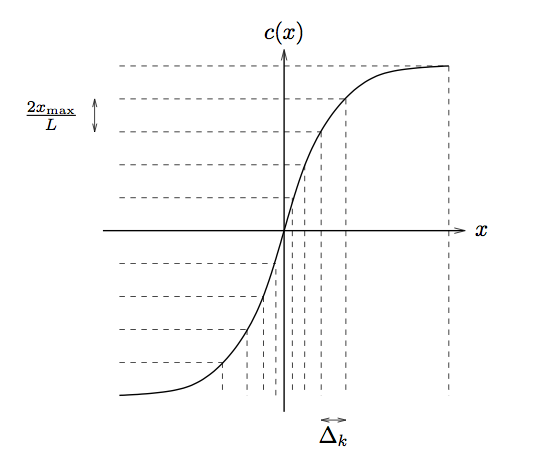

Compander curve: nonuniform input regions mapped to uniform output regions (for subsequent uniform quantization)
First we must express σ _q ² and H _y in terms of $c (x)$ . [link] suggests that, for large L , the slope $c^{'} (x) : = d c (x) / d x$ obeys
$c^{'} (x) |_{x \in X_{k}} = \frac{2 x_{max} / L}{Δ_{k}},$
so that we may write
$Δ_{k} = \frac{2 x_{max}}{L c^{'} (x)} |_{x \in X_{k}} .$
Assuming large L , the σ _q ² -approximation equation 9 from MSE-Optimal Memoryless Scalar Quantization (lower equation) can be transformed as follows.
$\begin{matrix} σ_{q}^{2} & = & \frac{1}{12} \sum_{k = 1}^{L} P_{k} Δ_{k}^{2} \\ = & \frac{x_{max}^{2}}{3 L^{2}} \sum_{k = 1}^{L} \frac{P_{k}}{c^{'} {(x)}^{2}} |_{x \in X_{k}} \\ = & \frac{x_{max}^{2}}{3 L^{2}} \sum_{k = 1}^{L} \frac{p_{x} (x)}{c^{'} {(x)}^{2}} Δ_{k} |_{x \in X_{k}} since P_{k} = p_{x} (x) |_{x \in X_{k}} Δ_{k} for large L \\ = & \frac{x_{max}^{2}}{3 L^{2}} \int_{- x_{max}}^{x_{max}} \frac{p_{x} (x)}{c^{'} {(x)}^{2}} d x . \end{matrix}$
Similarly,
$\begin{matrix} H_{y} & = & - \sum_{k = 1}^{L} P_{k} {log}_{2} P_{k} \\ = & - \sum_{k = 1}^{L} p_{x} (x) Δ_{k} {log}_{2} (p_{x}, (x), Δ_{k}) |_{x \in X_{k}} \\ = & - \sum_{k = 1}^{L} p_{x} (x) Δ_{k} {log}_{2} p_{x} (x) |_{x \in X_{k}} - \sum_{k = 1}^{L} p_{x} (x) Δ_{k} {log}_{2} Δ_{k} |_{x \in X_{k}} \\ = & \underset{h_{x} : ``differential entropy''}{\underset{︸}{- \int_{- x_{max}}^{x_{max}} p_{x} (x) {log}_{2} p_{x} (x) d x}} - \int_{- x_{max}}^{x_{max}} p_{x} (x) {log}_{2} \underset{Δ_{k}}{\underset{︸}{\frac{2 x_{max}}{L c^{'} (x)}}} d x \\ = & h_{x} - {log}_{2} \frac{2 x_{max}}{L} \underset{= 1}{\underset{︸}{\int_{- x_{max}}^{x_{max}} p_{x} (x) d x}} + \int_{- x_{max}}^{x_{max}} p_{x} (x) {log}_{2} c^{'} (x) d x \\ = & constant + \int_{- x_{max}}^{x_{max}} p_{x} (x) {log}_{2} c^{'} (x) d x \end{matrix}$
Entropy-Minimizing Quantizer: Our goal is to choose $c (x)$ which minimizes the entropy rate H _y subject to fixed error variance σ _q ² . We employ a Lagrange technique again, minimizingthe cost $\int_{- x_{max}}^{x_{max}} p_{x} (x) {log}_{2} c^{'} (x) d x$ under the constraint that the quantity $\int_{- x_{max}}^{x_{max}} p_{x} (x) {(c^{'}, (x))}^{- 2} d x$ equals a constant C . This yields the unconstrained cost function
$\begin{matrix} J_{u} (c^{'} (x), λ) = \int_{- x_{max}}^{x_{max}} \underset{φ (c^{'} (x), λ)}{\underset{︸}{[p_{x} (x) {log}_{2} c^{'} (x) + λ (p_{x} (x) {(c^{'}, (x))}^{- 2} - C)]}} d x, \end{matrix}$
with scalar λ , and the unconstrained optimization problem becomes
$min_{c^{'} (x), λ} J_{u} (c^{'} (x), λ) .$
The following technique is common in variational calculus (see, e.g., Optimal Systems Control by Sage&White). Say $a^{⋆} (x)$ minimizes a (scalar) cost $J (a (x))$ . Then for any (well-behaved) variation $η (x)$ from this optimal $a^{⋆} (x)$ , we must have
$\frac{\partial}{\partial ϵ} J (a^{⋆} (x) + ϵ η (x)) |_{ϵ = 0} = 0$
where ϵ is a scalar. Applying this principle to our optimization problem, we search for $c^{'} (x)$ such that
$\forall η (x), \frac{\partial}{\partial ϵ} J_{u} (c^{'} (x) + ϵ η (x), λ) |_{ϵ = 0} = 0 .$
From [link] we find (using ${log}_{2} a = {log}_{2} e \cdot {log}_{e} a$ )
$\begin{matrix} \frac{\partial J_{u}}{\partial ϵ} |_{ϵ = 0} & = & \int_{- x_{max}}^{x_{max}} \frac{\partial}{\partial ϵ} φ (c^{'} (x) + ϵ η (x), λ) |_{ϵ = 0} d x \\ = & \int_{- x_{max}}^{x_{max}} \frac{\partial}{\partial ϵ} [p_{x} (x) {log}_{2} (e) {log}_{e} (c^{'} (x) + ϵ η (x)) + λ (p_{x} (x) {(c^{'} (x) + ϵ η (x))}^{- 2} - C)] |_{ϵ = 0} d x \\ = & \int_{- x_{max}}^{x_{max}} [{log}_{2} (e) p_{x} (x) {(c^{'} (x) + ϵ η (x))}^{- 1} η (x) - 2 λ p_{x} (x) {(c^{'} (x) + ϵ η (x))}^{- 3} η (x)] |_{ϵ = 0} d x \\ = & \int_{- x_{max}}^{x_{max}} p_{x} (x) {(c^{'}, (x))}^{- 1} [{log}_{2} (e) - 2 λ {(c^{'}, (x))}^{- 2}] η (x) d x \end{matrix}$
and to allow for any $η (x)$ we require
${log}_{2} (e) - 2 λ {(c^{'}, (x))}^{- 2} = 0 \Leftrightarrow c^{'} (x) = \underset{a constant!}{\underset{︸}{\sqrt{\frac{2 λ}{{log}_{2} e}}}} .$
Applying the boundary conditions,
$\{\begin{matrix} c (x_{max}) = x_{max} \\ c (- x_{max}) = - x_{max} \end{matrix}\} \to \begin{matrix} c (x) = x \end{matrix} .$
Thus, for large- L , the quantizer that minimizes entropy rate H _y for a given quantization error variance σ _q ² is the uniform quantizer. Plugging $c (x) = x$ into [link] , the rightmost integral disappears and we have
$H_{y} |_{uniform} = h_{x} - {log}_{2} \underset{Δ}{\underset{︸}{\frac{2 x_{max}}{L}}},$
and using the large- L uniform quantizer error variance approximation equation 6 from Memoryless Scalar Quantization ,
$H_{y} |_{uniform} = h_{x} - \frac{1}{2} {log}_{2} (12, σ_{q}^{2}) .$
It is interesting to compare this result to the information-theoretic minimal average rate for transmission of a continuous-amplitudememoryless source x of differential entropy h _x at average distortion σ _q ² (see Jayant&Noll or Berger):
$R_{min} = h_{x} - \frac{1}{2} {log}_{2} (2, π, e, σ_{q}^{2}) .$
Comparing the previous two equations, we find that (for a continous-amplitude memoryless source) uniform quantizationprior to entropy coding requires
$\frac{1}{2} {log}_{2} (\frac{π e}{6}) \approx \begin{matrix} 0.255 bits/sample \end{matrix}$
more than the theoretically optimum transmission scheme, regardless of the distribution of x . Thus, 0.255 bits/sample (or $\sim 1.5$ dB using the $6.02 R$ relationship) is the price paid for memoryless quantization .
