Give an example of entrainment not mentioned in the text.

Got questions? Get instant answers now!

Many entrainment devices have a constriction, called a Venturi, such as shown in [link] . How does this bolster entrainment?

Got questions? Get instant answers now!

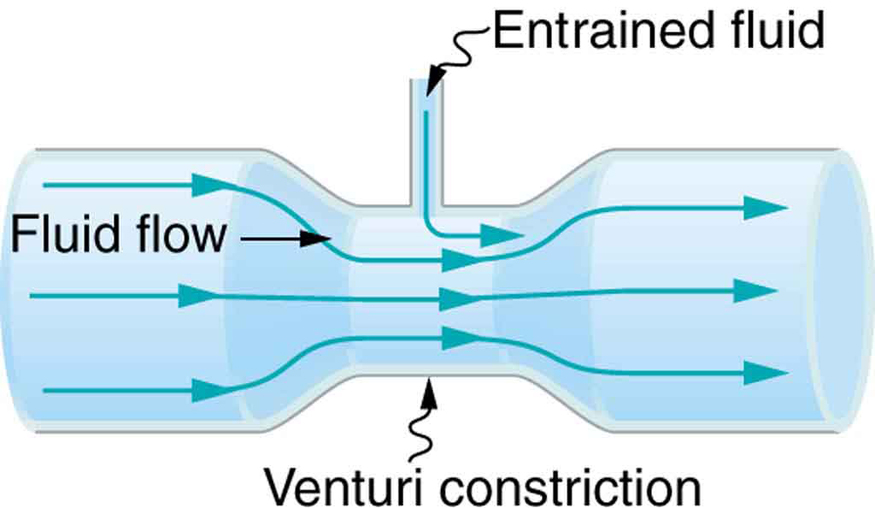

Figure shows a venturi tube, a cylindrical tube broader at both the ends and narrow in the middle. The narrow part is labeled as venturi constriction. The flow of fluid is shown as horizontal arrows along the length of the tube toward the right. The flow lines are closer in the center and spread apart at both the ends. There is an opening on the top portion of the narrow section for the entrained fluid to enter.
A tube with a narrow segment designed to enhance entrainment is called a Venturi. These are very commonly used in carburetors and aspirators.

Some chimney pipes have a T-shape, with a crosspiece on top that helps draw up gases whenever there is even a slight breeze. Explain how this works in terms of Bernoulli’s principle.

Got questions? Get instant answers now!

Is there a limit to the height to which an entrainment device can raise a fluid? Explain your answer.

Got questions? Get instant answers now!

Why is it preferable for airplanes to take off into the wind rather than with the wind?

Got questions? Get instant answers now!

Roofs are sometimes pushed off vertically during a tropical cyclone, and buildings sometimes explode outward when hit by a tornado. Use Bernoulli’s principle to explain these phenomena.

Got questions? Get instant answers now!

Why does a sailboat need a keel?

Got questions? Get instant answers now!

It is dangerous to stand close to railroad tracks when a rapidly moving commuter train passes. Explain why atmospheric pressure would push you toward the moving train.

Got questions? Get instant answers now!

Water pressure inside a hose nozzle can be less than atmospheric pressure due to the Bernoulli effect. Explain in terms of energy how the water can emerge from the nozzle against the opposing atmospheric pressure.

Got questions? Get instant answers now!

A perfume bottle or atomizer sprays a fluid that is in the bottle. ( [link] .) How does the fluid rise up in the vertical tube in the bottle?

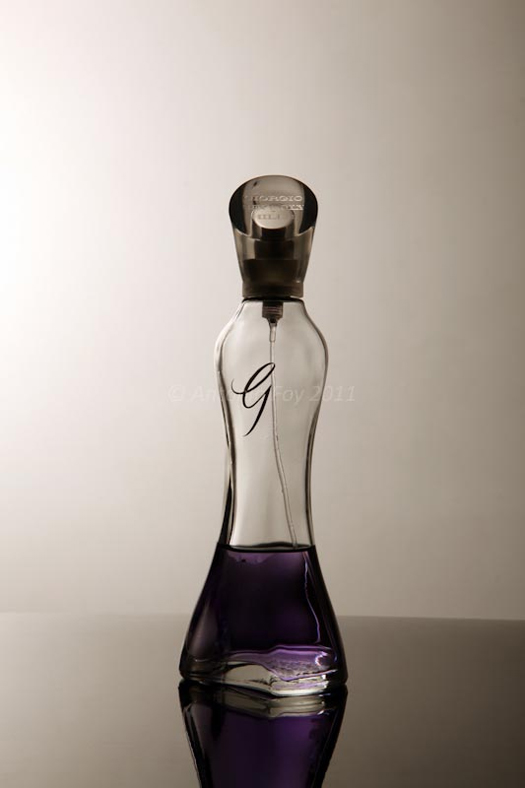

A perfume bottle with a spray cap.
Atomizer: perfume bottle with tube to carry perfume up through the bottle. (credit: Antonia Foy, Flickr)

Got questions? Get instant answers now!

If you lower the window on a car while moving, an empty plastic bag can sometimes fly out the window. Why does this happen?

Got questions? Get instant answers now!

Problems&Exercises

Verify that pressure has units of energy per unit volume.

P = Force Area , ( P ) units = N/m 2 = N m/m 3 = J/m 3 = energy/volume alignl { stack { size 12{P= { {"Force"} over {"Area"} } ,} {} #size 12{ \( P \) rSub { size 8{"units"} } ="N/m" rSup { size 8{2} } =N cdot "m/m" rSup { size 8{3} } ="J/m" rSup { size 8{3} } } {} # ="energy/volume" {}} } {}

Got questions? Get instant answers now!

Suppose you have a wind speed gauge like the pitot tube shown in [link] (b). By what factor must wind speed increase to double the value of h size 12{h} {} in the manometer? Is this independent of the moving fluid and the fluid in the manometer?

Got questions? Get instant answers now!

If the pressure reading of your pitot tube is 15.0 mm Hg at a speed of 200 km/h, what will it be at 700 km/h at the same altitude?

184 mm Hg

Got questions? Get instant answers now!

Calculate the maximum height to which water could be squirted with the hose in [link] example if it: (a) Emerges from the nozzle. (b) Emerges with the nozzle removed, assuming the same flow rate.

Got questions? Get instant answers now!

Every few years, winds in Boulder, Colorado, attain sustained speeds of 45.0 m/s (about 100 mi/h) when the jet stream descends during early spring. Approximately what is the force due to the Bernoulli effect on a roof having an area of 220 m 2 size 12{"220"`m rSup { size 8{2} } } {} ? Typical air density in Boulder is 1 . 14 kg/m 3 size 12{1 "." "14"`"kg/m" rSup { size 8{3} } } {} , and the corresponding atmospheric pressure is 8 . 89 × 10 4 N/m 2 size 12{8 "." "89" times "10" rSup { size 8{4} } `"N/m" rSup { size 8{2} } } {} . (Bernoulli’s principle as stated in the text assumes laminar flow. Using the principle here produces only an approximate result, because there is significant turbulence.)

2 . 54 × 10 5 N size 12{2 "." "54" times "10" rSup { size 8{5} } " N"} {}

Got questions? Get instant answers now!

(a) Calculate the approximate force on a square meter of sail, given the horizontal velocity of the wind is 6.00 m/s parallel to its front surface and 3.50 m/s along its back surface. Take the density of air to be 1.29 kg /m 3 size 12{1 "." "29"`"kg/m" rSup { size 8{3} } } {} . (The calculation, based on Bernoulli’s principle, is approximate due to the effects of turbulence.) (b) Discuss whether this force is great enough to be effective for propelling a sailboat.

Got questions? Get instant answers now!

(a) What is the pressure drop due to the Bernoulli effect as water goes into a 3.00-cm-diameter nozzle from a 9.00-cm-diameter fire hose while carrying a flow of 40.0 L/s? (b) To what maximum height above the nozzle can this water rise? (The actual height will be significantly smaller due to air resistance.)

(a) 1 . 58 × 10 6 N/m 2 size 12{1 "." "58" times "10" rSup { size 8{6} } " N/m" rSup { size 8{2} } } {}

(b) 163 m

Got questions? Get instant answers now!

(a) Using Bernoulli’s equation, show that the measured fluid speed v for a pitot tube, like the one in [link] (b), is given by

v = 2 ρ gh ρ 1 / 2 , size 12{v= left ( { {2 { {ρ}} sup { ' }gh} over {ρ} } right ) rSup { size 8{ {1} slash {2} } } } {}

where h size 12{h} {} is the height of the manometer fluid, ρ size 12{ { {ρ}} sup { ' }} {} is the density of the manometer fluid, ρ size 12{ρ} {} is the density of the moving fluid, and g size 12{g} {} is the acceleration due to gravity. (Note that v size 12{v} {} is indeed proportional to the square root of h size 12{h} {} , as stated in the text.) (b) Calculate v size 12{v} {} for moving air if a mercury manometer’s h size 12{h} {} is 0.200 m.

Got questions? Get instant answers now!
